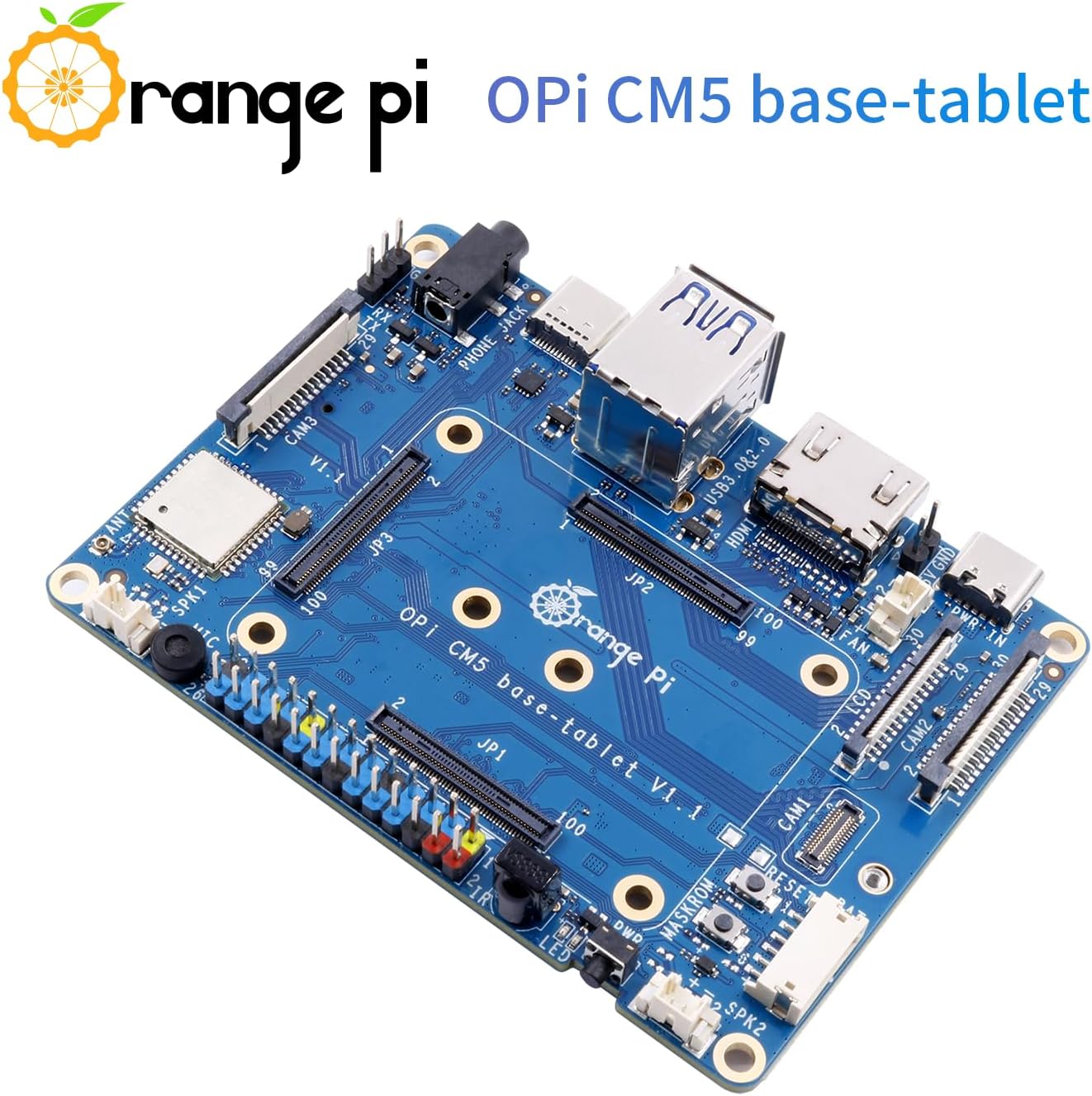

Orange Pi CM5 Tablet Baseboard with M.2 M-Key Slot, Supports WiFi 5.0 and Bluetooth 5.0, Compatible with Orange Pi CM5 Core Board
Product details
| Management number | 231804898 | Release Date | 2026/06/18 | List Price | $12.40 | Model Number | 231804898 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

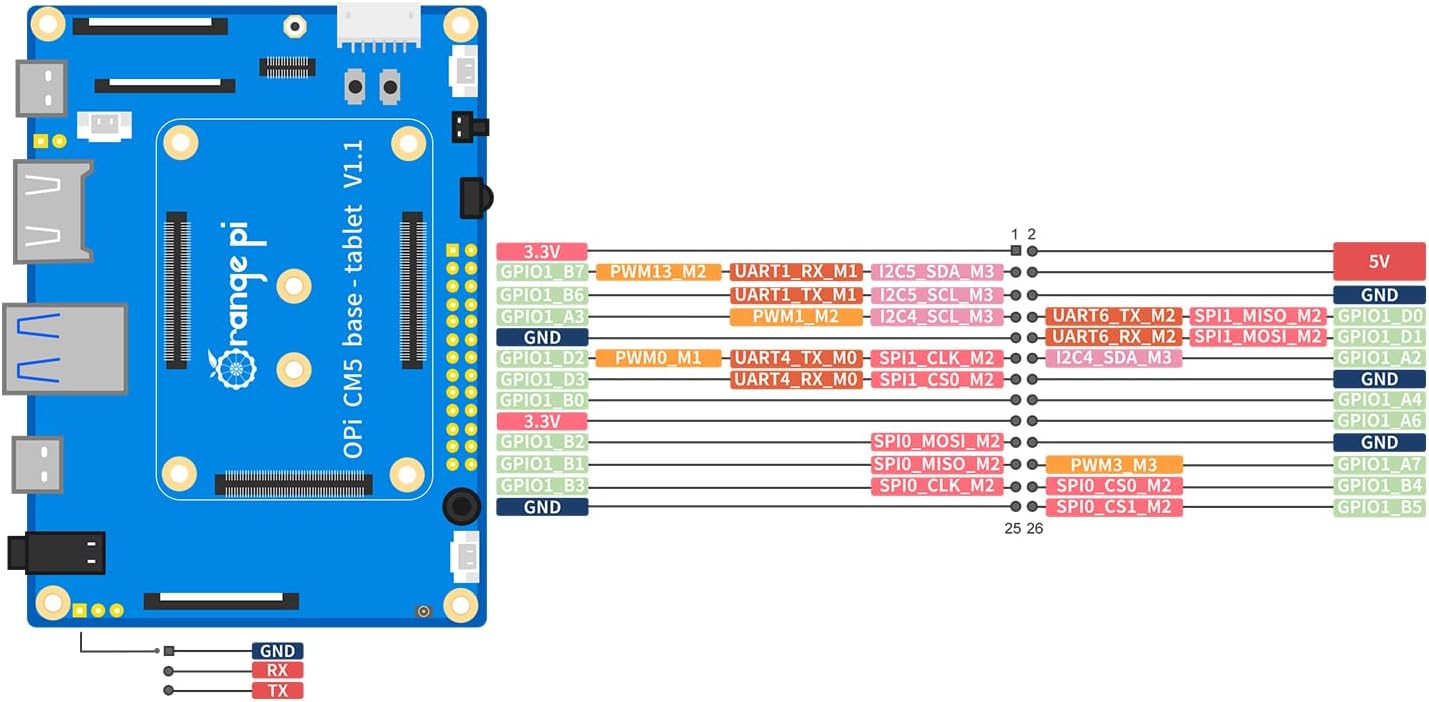

Hardware ParametersBoard-to-board connector: 3*100pin, 0.4mm pin pitch, connector model: df40c-100ds-0.4vMemory: MicroSD (TF) slotM.2 MKEY slot/ NVMe SSD (PCIe 2.0 1 Lane) or SATA3.0 SSDUSB: Type-C USB3.0/USB3.0/USB2.0Video output: HDMI2.1, supports up to 8K @60Hz/DP1.4 ALT 4Lane (shared TYPE C connector)/MIPI DPHY TX 4 Lane Camera: MIPI CSI 4 Lane/2*MIPI DPHY RX 2Lane Audio:3.5mm headphone jack audio in/out/HDMI 2.1 eARC/Input: onboard MIC/Output: 2*SPK sockets, 2pin 1.25mmWi-Fi, BT module: Onboard Wi-Fi5+BT 5.0/BLE module:AP6256Expansion port: 26pin double-row pinsDual row pin: 2.54mm 26PinSupport DC 5V and 3.3V power output.Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.Button: 1* MaskRO/1*RESET/1 * PWR INPower supply: Support Type-C power supply, 5V @ 5ABattery Holder: Battery holder: board-to-wire connection, 6pin, 1.5mm pitch, supports single Li-ion battery charging function, charging current up to 3.78AButton interface: 6pin FPC socket, pin distance 0.5mmSensor interface: 6pin FPC socket, pin distance 0.5mmLED: Power indicator: red; status indicator: greenFan: 5V 2pin 1.25mm socketSPK: 2PIN 1.25mm socketRTC: Test pad spare, can be connected to 3V spare RTC batteryDebugging: Debugging serial port UARTPCB: 90mm*66mm*1.6mmWeight:43g
- 🍊[Orange Pi CM5 Tablet Base Board]: This official base board is designed for seamless integration with the Orange Pi CM5 core board, providing a versatile platform for development or as an embedded solution in end products.
- 🍊[Wireless Connectivity]: Equipped with Wi-Fi 5, Bluetooth 5.0, and BLE support, enabling fast and reliable wireless communication for various applications.
- 🍊[Battery Support]: Includes a battery holder with a board-to-wire connection (6-pin, 1.5mm pitch), supporting single Li-ion battery charging with a current of up to 3.78A.
- 🍊[Video Output]: Supports HDMI 2.1 with up to 8K@60Hz resolution, DP1.4 ALT (4 Lane) via a shared Type-C connector, and MIPI DPHY TX (4 Lane) for versatile display integration.
- 🍊[Camera Interface]: Features MIPI CSI (4 Lane) and 2×MIPI DPHY RX (2 Lane) interfaces for advanced image and video input processing.
| ASIN | B0DPHYY7HG |
|---|---|
| Brand | Orange Pi |
| CPU Model | ARMv7 |
| Model Name | CM5 |
| Manufacturer | Orange Pi |
| Model Number | CM5 Tablet BaseBoard |
| BuiltIn Media | Orange Pi 4A |
| Processor Brand | ARM |
| Processor Count | 1 |
| Total Usb Ports | 4 |
| Operating System | Linux |
| Compatible Devices | Cameras, Displays, Audio Devices |
| Warranty Description | 12 MONTH |
| Wireless Compability | 802.11ac |
| RAM Memory Technology | LPDDR4 |
| Connectivity Technology | USB 3.0, HDMI 2.1, Wi-Fi 5, Bluetooth 5.0 |
